TDG - GLT series chain plate scale

Structure Characteristics

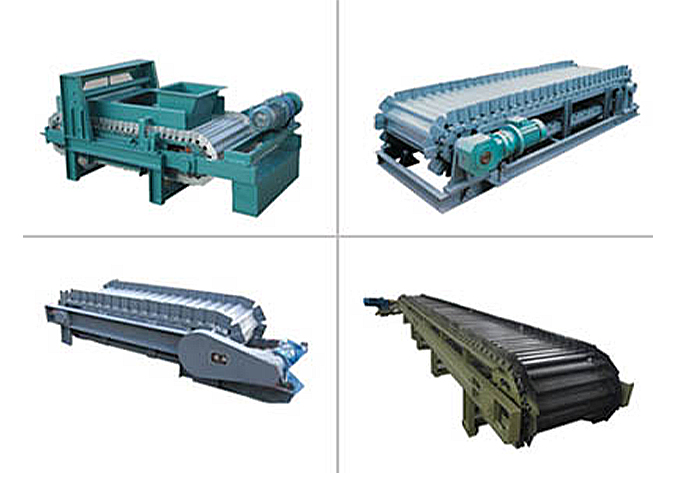

TDG-GL series chain plate scale is an automatic quantitative feeding or measuring device developed to solve the measurement and control of high temperature clinker in cement industry. It can be widely used in the measurement and feeding device of clinker out of kiln and high temperature clinker into mill in cement industry. In order to improve cement production, reduce heat consumption, and provide accurate measurement data for scientific management of kiln. It can also be used for continuous feeding measurement of materials with high humidity. TDG-GL high temperature chain plate scale adopts suspension installation mode, which highlights many advantages such as high measurement accuracy, reliable operation, simple maintenance, low maintenance and strong adaptability to environmental conditions.

Static measurement error

≤0.5%

Dynamic cumulative error

≤2%

Control accuracy

Better than 2%

Range of measurement

1-200t/h

Zero-value stability

Better than 0.007%Cmax

Velocity signal

40 pulses per revolution

Weighing sensor

Weighing display instrument

Electromechanical

The material is stainless steel, dustproof, stable performance, accuracy is better than 0.3%. , protection class is IP68, with overload protection device. Specific parameters are as follows:

Nonlinear: less than 0.03% of rated output

Repeatability: less than 0.03% of rated output

Lag: less than 0.03% of rated output

Temperature sensitivity: 0.0003C at zero

Excitation voltage: 10VDC provided by weighing control instrument

The above parameters finally meet the requirements of NTEP 1:500 class LSigle Cell error required by American metrological organization

Accuracy: better than 0.025%;

Dot matrix Chinese fluorescent display;

Rolling, drop-down menu mode;

Display instantaneous flow, cumulative weight, overflow alarm state;

Can display the original parameter value, new input parameter value, operation state prompt: can display zero value, tare value, net weight value, A /D conversion digital quantity, speed sensor pulse number;

32-bit microprocessor with non-volatile memory EPROM. The calibration data entered by the keyboard is stored in a CMOSRAM with a backup battery for ten years.

Alarm and control function: with sound and light alarm function and output control function: touch key input, the input status and prompt can be displayed by dot matrix digital fluorescent screen;

Analog signal input: 0~20mV and 0~30mV;

Two analog current output: one 4~20mA instantaneous flow output, one 4~20mA control current output;

Communication interface: RS-232 /RS-485;

P.I.D control

Ratio: 5 to 500% ratio band

Integral: 0.01-10min

Differential: 0.01-10min

P.E.I.C. (Periodic Error integration control)

Integration: 0.01-10min

Relay: 1-100S

Control loop: Two separate control loops

Control the amount of feed

Other devices can be controlled

1. Product details

2.the main characteristics

The unique L-shaped transport plate is made of wear-resistant steel plate by die stamping molding, compact structure, smooth operation, minimal noise, and the conical baffle on both sides can effectively prevent the leakage of materials;

Conveying mechanism adopts large pitch cast sprocket and single curved plate roller chain P=100) after special heat treatment, high temperature resistance, wear resistance and no deviation phenomenon in the conveying process;

Drag mechanism supporting BW series cycloidal pin wheel reducer, smooth transmission, low noise, low vibration, dust resistance;

The unique weak magnetic gear speed measuring device and high temperature resistant load sensor make the weighing and measuring speed signal accurate and stable.

4.Product details

Static measurement error: ≤0.5%

Dynamic cumulative error (equivalent) : ≤2%(in use)

Control accuracy: better than 2% Measurement range :1-200t/h

Zero stability: better than 0.007%Cmax

Weighing signal nonlinearity: ≤0.5%

Speed measurement signal: 40 pulses/revolution

Four-stage three-phase AC induction motor: 1.5kw, 2.2kw

High temperature resistance range: <350C

Measuring clinker specification: granular, block, diameter is not greater than 80mm to ensure uniform discharge shall be subject to

Sensor: The accuracy of weighing sensor and velocity sensor is better than 0.1%. The weighing sensor has overload protection, and the overload coefficient is 150%
